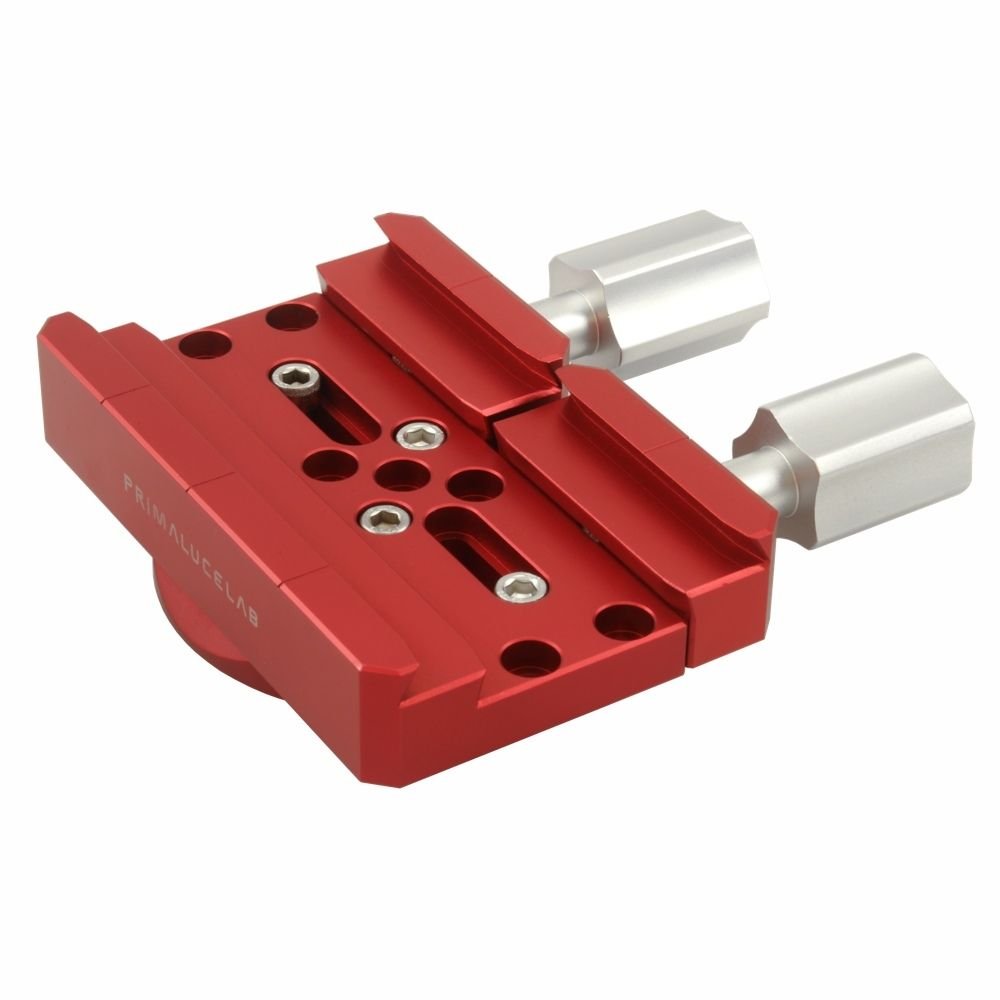

Big dovetail clamp Vixen+Losmandy PLUS for AZ-EQ5

PLLMORVLPB-AZEQ5_

The big dovetail clamp Vixen+Losmandy PLUS for AZ-EQ5 allow to install on the Skywatcher AZ-EQ5 mount telescopes with Vixen and Losmandy type dovetail bars. It includes both the big dovetail clamp Vixen+Losmandy PLUS and the adapter for the AZ-EQ5 type mount.

Thus you will have a better connection than the original AZ-EQ5 offering greater stability and more comfortable and large knobs for a secure closure of the telescope.

Pay in a single solution or over 3 installments of €50,82*
* Pay in 3 installments is a service offered by Paypal, if available in your state. You can select to pay in 3 installments in Paypal.
Availability: In Stock


€152.46
VAT excluded

If you pay by bank transfer 147,89 €

Pay in a single solution or over 3 installments of €50,82*
* Pay in 3 installments is a service offered by Paypal, if available in your state. You can select to pay in 3 installments in Paypal.

Composed of



The Skywatcher AZ-EQ5 mount has only a Vixen type dovetail clamp, but thanks to our Losmandy and Vixen dovetail clamp, the user will be able to use both of them. Now you will no longer need to replace the plate of your optical tube, so your AZ-EQ5 will be universal like the most expensive and higher mounts!

Our dovetail clamp, therefore suitable to medium loads, it's made from a full aluminum block T6061 and red anodized to resist weathering. The installation on the Skywatcher AZ-EQ5 is done by replacing the original upper flange with a new flange (supplied with the dovetail clamp) that enables the installation both of the Vixen or Losmandy type dovetail bars. The operation is very simple, just remove the original flange, acting on three small threaded dowels and enter our flange.



Big dovetail clamp Vixen+Losmandy PLUS for AZ-EQ5





Losmandy® is registered trademark of Hollywood General Machining, Inc.

Reviews

No reviews

You might also like

Vixen style dovetail plate...
In Stock
Dovetail bars

Vixen style dovetail plate 240mm PLUS

PLLVIX240P
€48.36

If you pay by bank transfer 147,89 €

Be the first to review this product
The Vixen style dovetail plate 240mm PLUS is designed to let you install telescopes or cameras on mounts with Vixen type clamp or photographic heads with Arca Swiss type clamp. This Vixen plate is 240mm long and, not only it comes with central threaded holed and slots, but also threaded holes to connect to other PLUS mechanical components such as support...
Losmandy style dovetail...
Not available
Dovetail bars

Losmandy style dovetail plate 240mm PLUS

PLLLOS240P
€60.66

If you pay by bank transfer 147,89 €

Be the first to review this product
The Losmandy style dovetail plate 240mm PLUS is designed to let you install your telescopes on mounts with this plate. This dovetail plate is 240mm long and is useful for installing medium dimensions telescopes (such as refractors up to 130mm and reflectors up to 200mm in diameter) on mounts with Losmandy plate (as the SkyWatcher AZ-EQ6, or EQ8). Like all...
View

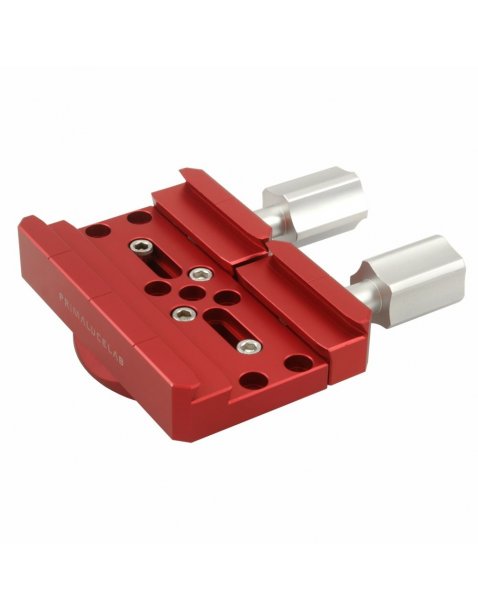

Big Dovetail Clamp...
In Stock
Dovetail clamps

Big Dovetail Clamp Vixen+Losmandy PLUS

PrimaLuceLab
PLLMORVLPB
€118.85

If you pay by bank transfer 147,89 €

1 Reviews
The big dovetail clamps provide the connection to telescopes support plates and are useful to create support instruments like side-by-side plates (to support two telescopes in parallel on the same mount) or to allow the precise positioning of the guide rings (to adjust precisely the weight balance), or give the possibility to assemble the Losmandy...

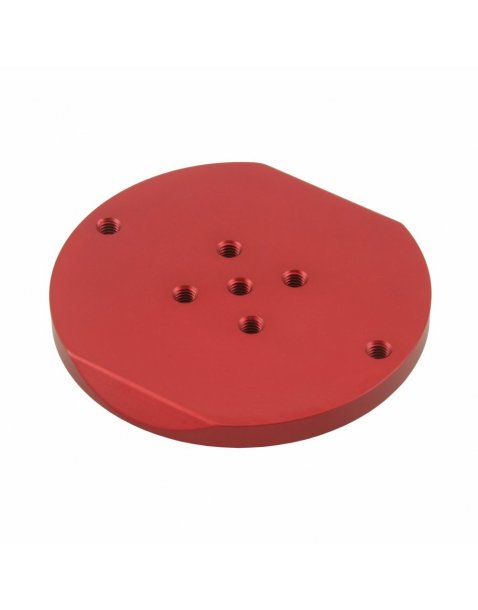

AZ-EQ5 PLUS adapter plate
