Big dovetail clamp Vixen+Losmandy...

FAST SHIPPING with express courier

Big dovetail clamp Vixen+Losmandy PLUS for HEQ5

PLLMORVLPB-HEQ5_

The big dovetail clamp Vixen+Losmandy PLUS for HEQ5 allows you to install, on the Skywatcher HEQ5 mount, telescopes with Vixen and Losmandy dovetail bars.

The HEQ5 mount can connect only Vixen type dovetail plates: with our big dovetail clamp Vixen+Losmandy PLUS for HEQ5 you can also connect the Losmandy type dovetail plates!

Pay in a single solution or over 3 installments of €49,18*
* Pay in 3 installments is a service offered by Paypal, if available in your state. You can select to pay in 3 installments in Paypal.
Availability: In Stock


€147.54
VAT excluded

If you pay by bank transfer 143,11 €

Pay in a single solution or over 3 installments of €49,18*
* Pay in 3 installments is a service offered by Paypal, if available in your state. You can select to pay in 3 installments in Paypal.

Composed of



The Skywatcher HEQ5 mount has only a Vixen type fitting, but thanks to our Losmandy and Vixen dovetail clamp, the user will be able to use both of them.
Now you will no longer need to replace the plate of your optical tube, so your HEQ5 will be universal like the most expensive and higher payload mounts!

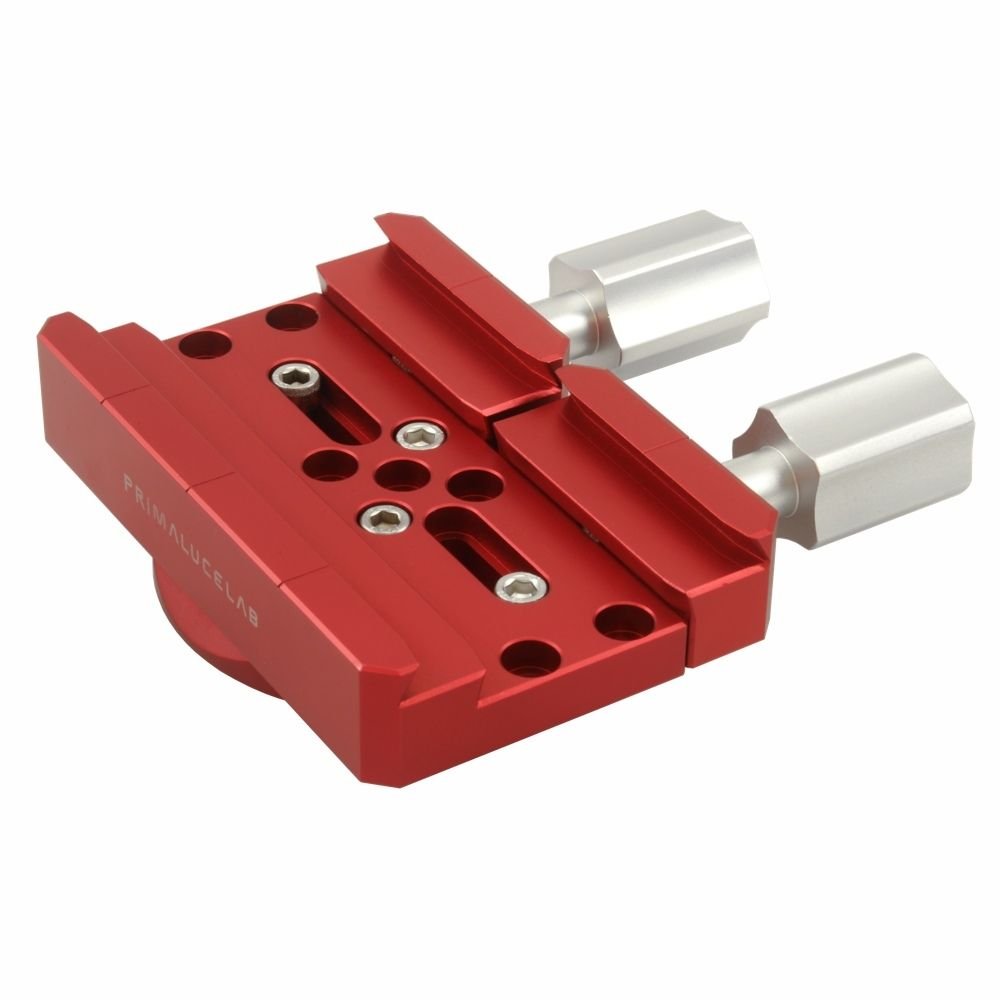

Big dovetail clamp Vixen+Losmandy PLUS for HEQ5

Our dovetail clamp, therefore suitable to medium loads, it's made from a full aluminum block T6061 and red anodized to resist weathering. The installation on the Skywatcher HEQ5 is done by replacing the original upper flange with a new flange ( supplied with the terminal ) that enables the installation of the Vixen Losmandy - large. The operation is very simple, just remove the original flange, acting on three small threaded dowels and entering our flange.



Big dovetail clamp Vixen+Losmandy PLUS for HEQ5





Losmandy® is registered trademark of Hollywood General Machining, Inc.
