ESATTO 7.5" LP focuser with ARCO 7"...

FAST SHIPPING with express courier

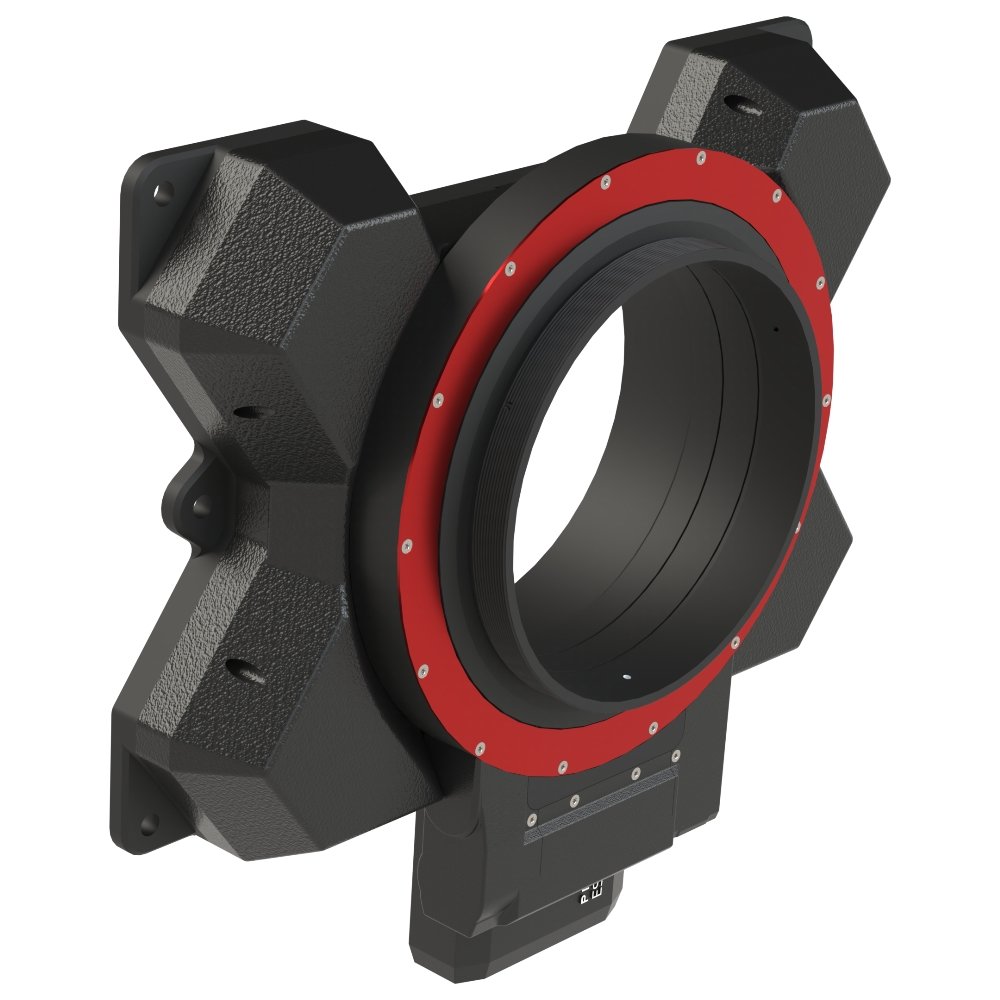

ESATTO 7.5" LP focuser with ARCO 7" rotator

PLLEST75LPARCO7

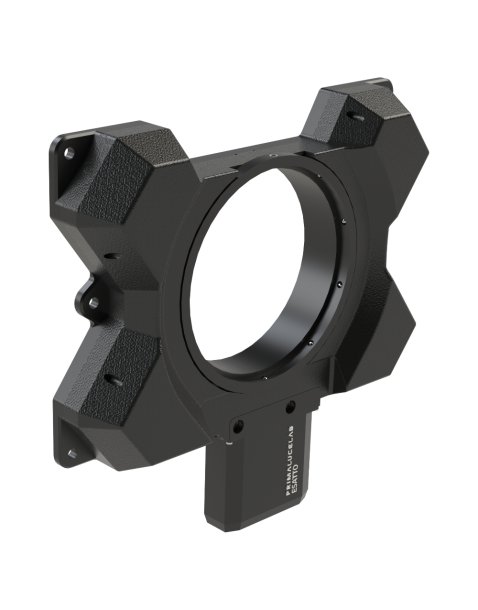

ESATTO 7.5" LP focuser with ARCO 7" rotator is the focusing rotator we designed even for the largest telescopes! This bundle (weight 13.5 kg) includes our most advanced motorized focuser and rotator designed for large professional telescopes, offering an ultra-low profile (90mm optical thickness), a massive 183mm free aperture, with extreme precision of 0.08-micron step resolution for focusing and 0.36 arcseconds per step resolution for rotation. It provides seamless, high-accuracy positioning for research, spectroscopy and astrophotography applications. This system ensures unparalleled stability, high payload capacity (up to 40 kg), and full remote operation. Ideal for professional observatories and high-end research, ESATTO 7.5” LP + ARCO 7” delivers precision, reliability, and automation for large telescopes, revolutionizing focus and rotation control.

The ESATTO 7.5” LP focuser with ARCO 7” rotator is custom-built upon request, tailored to the specific telescope you intend to connect it to. As the price varies depending on the design, please contact us if you’re interested.

Composed of



ESATTO 7.5" LP focuser with ARCO 7" rotator - main features:

  • Weight load capacity: 40 kg (88.18 lb)
  • Free aperture: 183mm (7.20 inches)
  • Optical thickness: 90mm (3.54 inches)
  • Focusing resolution: 0.08 micron per step
  • Rotation resolution: 0.36 arcseconds per step
  • Connection to PC: USB-C
  • Power requirement: 12V 1A
  • Weight: 13.5 kg (29.8 lb)





Designed for a perfect integration

Since ESATTO focuser and ARCO rotator are designed to work together, you doesn't need to have different USB and power cables to connect both devices to your control computer. You will have just one USB cable to the ESATTO (and you will have to add 12V power only if your computer is not able to provide enough current through the USB port) and a short cable to connect ESATTO to ARCO.



ESATTO 7.5 LP focuser with ARCO 7 rotator





Control focus and rotation with PLAY - Prima Luce AstrophotographY software

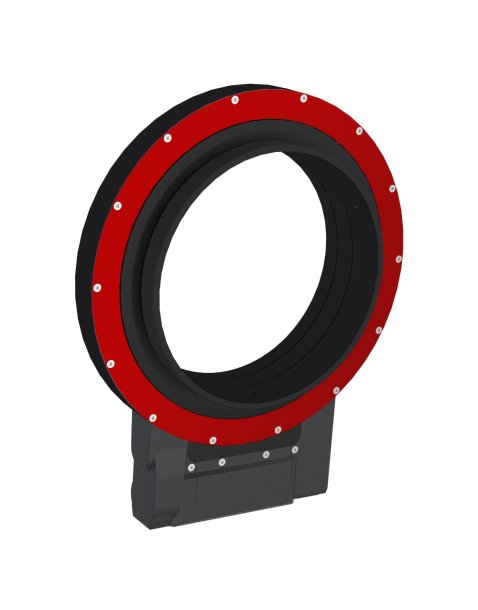

ESATTO focuser and ARCO rotator are provided with ASCOM drivers (so you can control them with any astrophotography softwares for Windows that supports ASCOM focusers and rotators) but they can also be controlled with PLAY, the astrophotography software just developed by PrimaLuceLab to allow easier use of telescopes with all its devices together with the cameras, optical tubes, mounts and other accessories that the user is free to choose. PLAY, the Prima Luce AstrophotographY software, allows to remotely control the ESATTO focuser for a very precise focus of your telescope and the ARCO rotator that can be used both as a camera rotator and a field de-rotator, based on the mount you use with your telescope.





ESATTO 7.5 LP focuser with ARCO 7 rotator





ESATTO 7.5" LP focuser with ARCO 7" rotator - dimensions:

ESATTO 7.5 LP focuser with ARCO 7 rotator

New product

Reviews

No reviews
