PLUS 10mm spacers

FAST SHIPPING with express courier

PLUS 10mm spacers

PrimaLuceLab
PLLSPES10

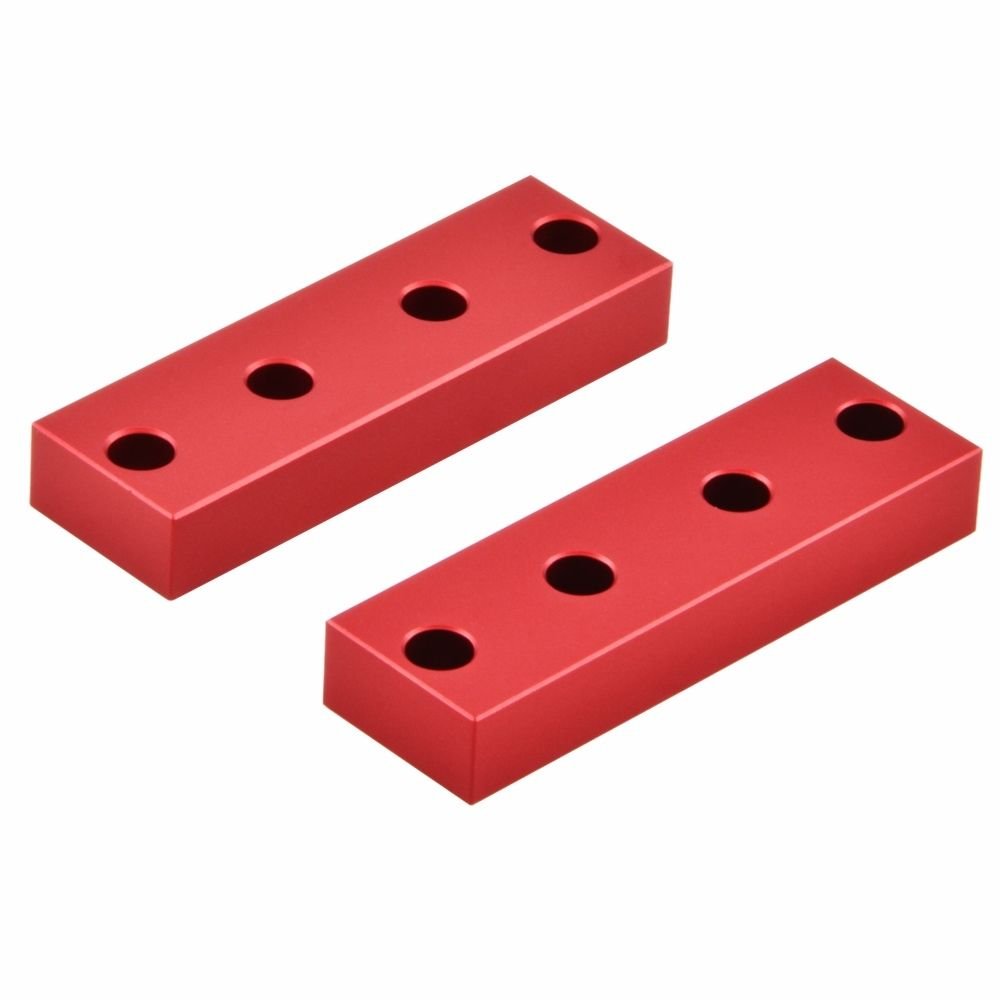

When we install many instruments (for example telescope with guide scope in parallel) on the mount, it can happen that they are too close together, and that some element touches the others. That's why we created the PLUS 10mm spacers that can be fixed between two mechanical elements (such as a plate and the support rings), keeping the functionality of the PLUS system. In fact they have four holes, with 20mm separation to fix PLUS Vixen dovetail bars and guide rings and 55mm for PLUS Losmandy dovetail bars. The PLUS spacers have holes to fix the other elements always with M6 screws but of greater length (20mm) which are provided in the package (4 screws).
Availability: In Stock

Delivery in 2-5 days from shipment with express courier


€23.77
VAT excluded

If you pay by bank transfer 23,06 €



When we install many instruments (for example telescope with guide scope in parallel) on the mount, it can happen that they are too close together, and that some element touches the others. That's why we created the PLUS 10mm spacers that can be fixed between two mechanical elements (such as a plate and the support rings), keeping the functionality of the PLUS system. In fact they have four holes, with 20mm separation to fix PLUS Vixen dovetail bars and guide rings and 55mm for PLUS Losmandy dovetail bars.

PLUS 10mm spacers

The PLUS spacers have holes to fix the other elements always with M6 screws but of greater length (20mm) which are provided in the package (4 screws). In the image above, the PLUS spacers have been installed between a PLUS Losmandy dovetail bar and PLUS support rings.

PLUS 10mm spacers

EAN code
8059020771478

Reviews

2 Reviews
Great for my Askar 80PHQ
I bought 2 pairs of these for my Askar 80PHQ telescope. The telescope rings aren't high enough to clear the ZWO EAF mounting bracket, but with these spacers, it works fine! The 20mm spacing of the holes and the 2 M6 screws are compatible with the Askar's ring, and I could secure the telescope with 4 screws.

I used the other pair of spacers for the top of the rings, to add some clearance to the Askar 150mm multi-connection finder plate. I use this as a better handle than the default, green one.

The picture doesn't show it, but there's a 5th hole right in the middle of the spacer (like shown on the drawings).

Very happy with the quality of these!
on
perfect for mounting an FSQ-85 with the 95mm rings to longer dov
I bought these for mounting the 95mm rings for my FSQ-85 to a 350mm Losmandy type dovetail. These spacers are needed as the dew-shield and the focuser would be in the way for longer dovetails. As the FSQ with imaging equipment is very back-heavy longer dovetails are more convenient for balancing.
These spacers come with longer screws, so mounting the tube rings to the dovetail was easy and the PLUS system makes it very solid.

If you want to mount a longer dovetail on top of the FSQ then higher spacers would be needed, so it can pass over the focuser-lock.
I think the 30mm would be best to still be able to use the focuser-lock mechanism.
on
